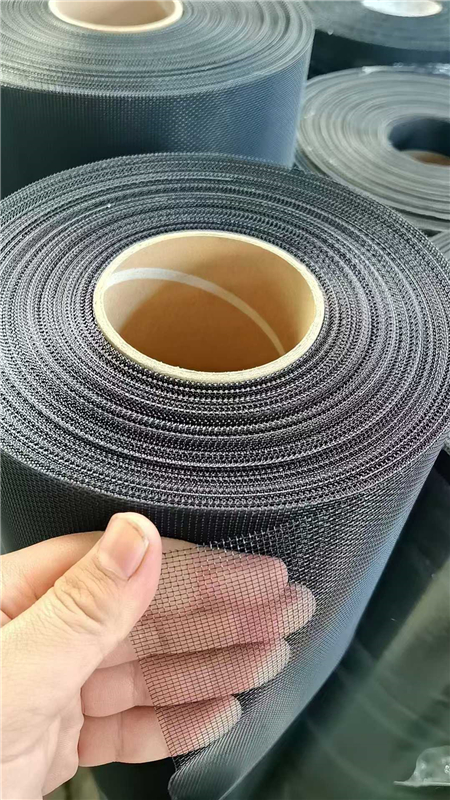

Epoxy coated screen also called epoxy coated mesh. The plain steel wire or other woven together then coated with epoxy resin powder through electrostatic spraying process. It’s a dense thin film that protects the substrate from corrosion and oxidation. The epoxy coated wire mesh is mainly used as supporting layer in air filter or hydraulic filter. The structure is stable and price is affordable. It’s the ideal choice of filter parts.
Basic Material:
- Plain steel also called black steel or carbon steel
- Aluminum
- Stainless steel
Specification of Epoxy Screen
| Item | Material | Mesh (LPI) | Wire | Width | Length | Coating color |
| 1 | Black steel Q1985 | 18x14 | 0.18mm | 20-1300mm | 30-3000mm | black, white, grey, green and other |
| 2 | Black steel Q1985 | 12x10 | 0.25mm | 20-1300mm | 30-3000mm | black, white, grey, green and other |
| 3 | Black steel Q1985 | 22x15 | 0.18mm | 20-1300mm | 30-3000mm | black, white, grey, green and other |
| 4 | Black steel Q1985 | 22x20 | 0.18mm | 20-1300mm | 30-3000mm | black, white, grey, green and other |
| 5 | AL5154 | 17x15 | 0.25mm | 20-1300mm | 30-3000mm | black, white, grey, green and other |
| 6 | AL 5154 | 18x14 | 0.21mm | 20-1300mm | 30-3000mm | black, white, grey, green and other |
| 7 | AL 5154 | 18x16 | 0.25mm | 20-1300mm | 30-3000mm | black, white, grey, green and other |
| 8 | SS304/316 | 18x16 | 0.21mm | 20-1300mm | 30-3000mm | black, white, grey, green and other |
| 9 | SS304/316 | 18x16 | 0.23mm | 20-1300mm | 30-3000mm | black, white, grey, green and other |
| Note: 1.We could cut the width according to customer’s demand. 2.Many stocks are available 3.Other mesh and wires can be customized. |
||||||
Feature of Filtalloy Epoxy Coated Screen
- Resist oil and corrosion well.Our epoxy coated screen has been test by many countries’ customers with different brands of hydraulic oil filter. They test it at different temperature. Our products passed the test. The epoxy coated screen is the ideal choice of hydraulic filter which is used in high temperature and high pressure atmosphere.
- Resist weather well.The epoxy coated surface has no change under the salty environment continuous test 96hours. The test is carried out according to the standard of ASTM B117-09 salt spray test. Our epoxy coated mesh is suitable for the air filter used in harsh environment and outdoor environment.
- Structure firm. No wire loose problem
- Excellent flexibility. Easy to cut and pleat
- Epoxy powder with strong adhesion. It can pass the test of 1kg/50cm impact test, scratch test, H grade pensile test and anti-fatigue test. When pleating the epoxy coated wire mesh, the powder won’t fall off.
- Lower cost
Application of Epoxy Coated Screen

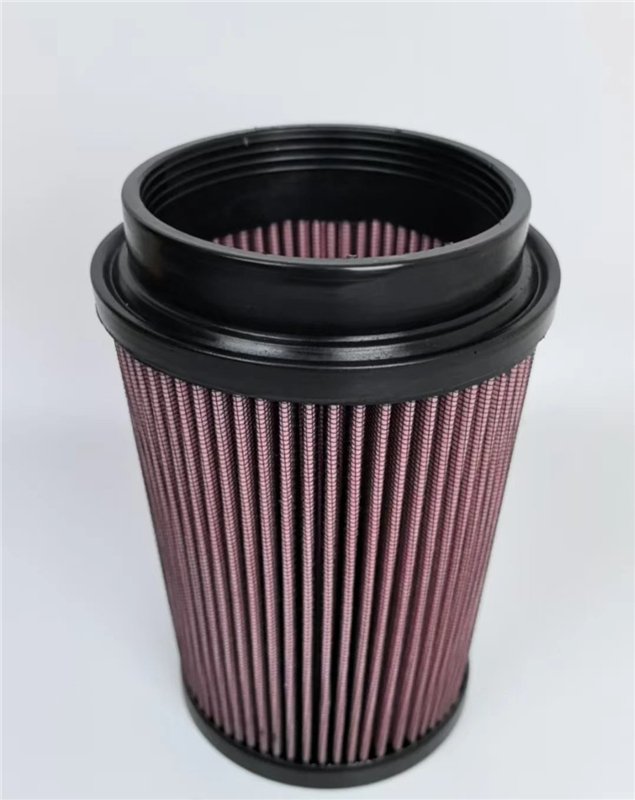

- Supporting layer of air filter or ventilation system
- Supporting layer of hydraulic filter
- Insect protect screen
- Window screen
